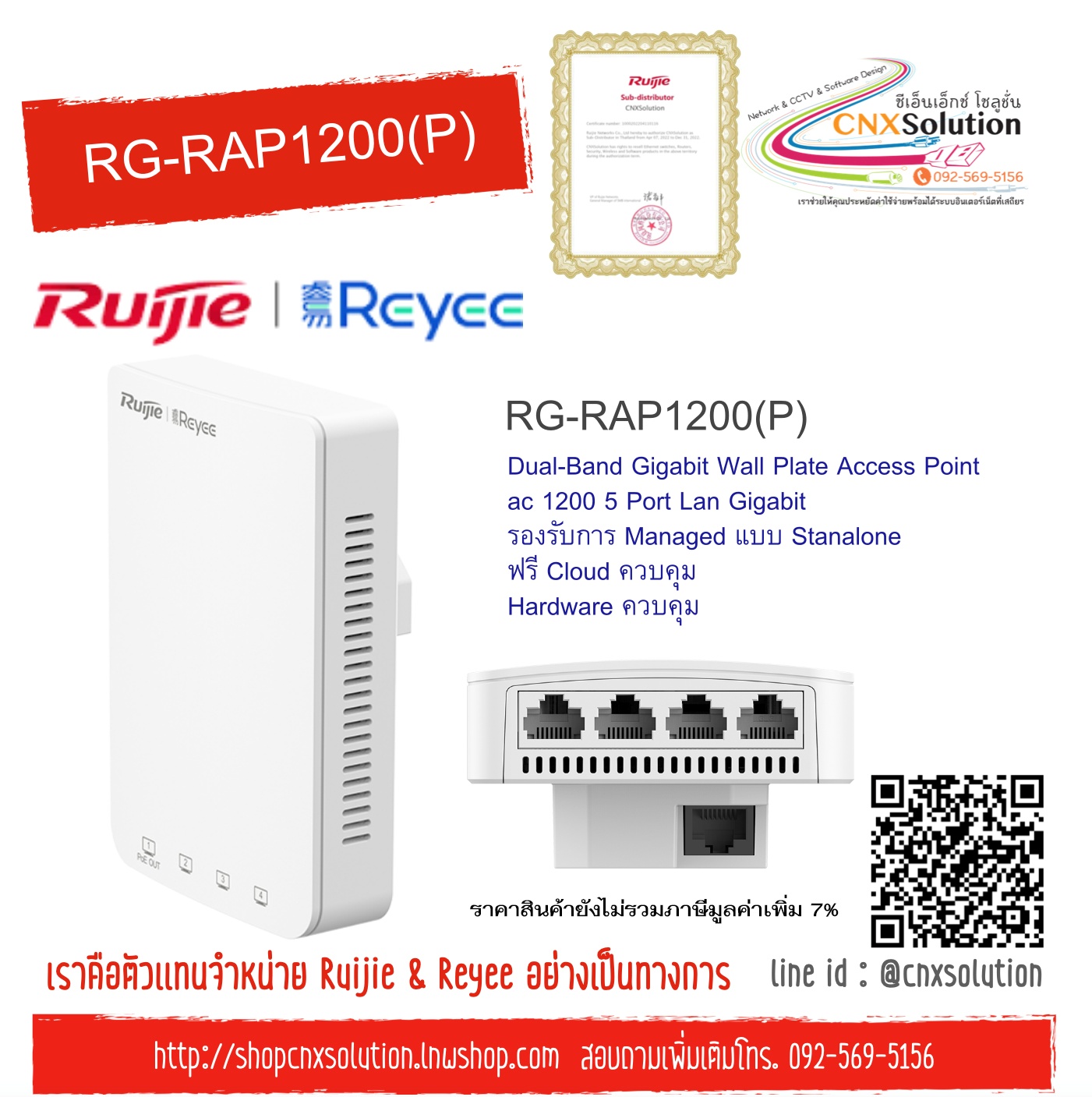

RG-RAP1200(P) Dual-Band Wall Plate Access Point ac 5 Port Gigabit

  Hardware specifications

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n ：2.4G ~ 2.4835GHz

802.11a/n/ac ： 5G：5.150～5.350GHz，5.725～5.850GHz

Antenna

built-in antenna

Spatial Streams

2.4G 2x2MIMO  5G 2x2MIMO

Max Throughput

2.4G: up to 400Mbps

5G: up to 867Mbps

Access rate per AP: 1.267Gbps

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receive Sensitivity

11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps)

11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps）

11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15

11ac HT20：-83dBm（MCS0）, -57dBm（MCS9）

11ac HT40：-79dBm（MCS0）, -57dBm（MCS9）

11ac HT80：-76dBm（MCS0）, -51dBm（MCS9）

Maximum Transmit Power

20 dBm(adjustable)

Adjustable Power

1dBm

Dimensions

126mm×86mm×46.3mm(5.0in x 3.4 in x 1.8 in.)(excluding barckets)

Weight

≤0.24kg(excluding barckets)

Service Ports

Front：
4 10/100/1000Base-T Ethernet ports

LAN1 port supports IEEE.802.3af PoE out

Rear：
1 10/100/1000Base-T Ethernet port

Management Port

N/A

LED Indicator

1 LED indicator

Power Supply

Support PoE (802.3af/at)

Power Consumption

≤8W(max power consumption is 23.4W PoE output included )

Environment

Operating temperature: 0°C～40°C  (32℉ to 104℉)

Storage temperature: -40°C～70°C  (-40℉ to 158℉)

Operating humidity: 5％～95％（non-condensing）

Storage humidity: 5％～95％（non-condensing）

Installation

Wall plate installation

Safety Standard

GB4943, IEC 62368-1

EMC Standard

GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035

Vibration Standard

IEC61373

Radio Standard

EN300 328, EN301 893

MTBF

>250000H

Software Features

Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 110

Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz)

Up to 8 SSIDs

Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication

Support static blacklist and whitelist

Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform
